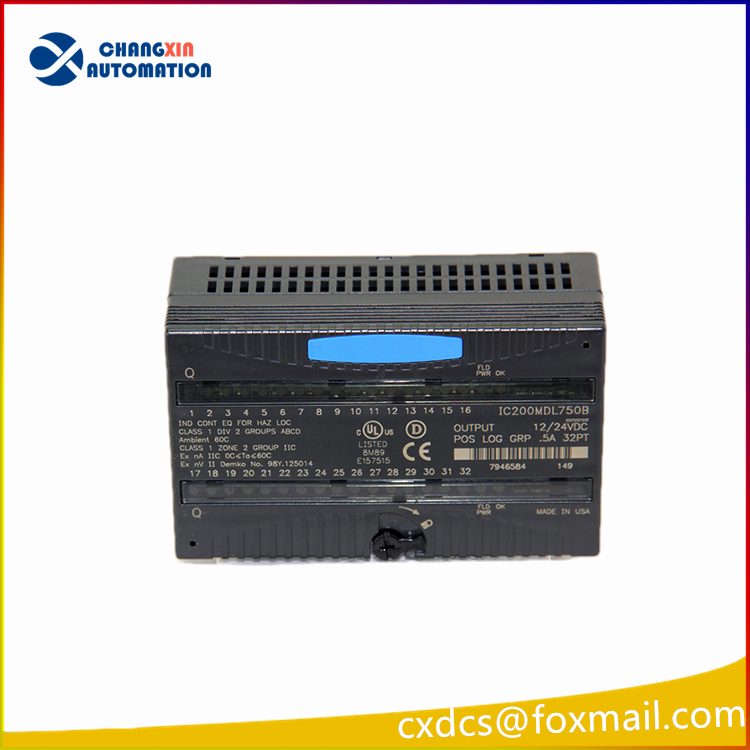

IC200MDL750J GE VersaMax输出模块

IC200MDL750是通用电气发那科自动化公司生产的VersaMax输出模块。该模块共有32个输出点，分布在两组16个输出点上。每个输出点都是离散的，这意味着信号只能有两种状态，例如开或关以及开或关。该模块的离散输出可以是正逻辑或源类型，它们的作用是将正负载切换到直流(DC)电源，并向负载供电。该器件与IC200CHSxxx系列的载体底座配合使用。

由于IC200MDL750是一个输出模块，它需要一个额外的电源用于所有正负载切换。该产品将从5v底板电源消耗高达90毫安的电流，并且该模块的工作电压可以是从10.2伏直流电到30伏直流电的任何电压。额定工作电压为12伏或24伏直流电。注意:要在12伏DC下工作，该设备必须至少升级到IC200MDL750B版本或更新版本。

The IC200MDL750 is a VersaMax output module made by General Electric Fanuc Automation. This module has a combined total of 32 output points spread across two groups of 16. Each output point is discrete, meaning that signals can only have two states—on or off and open or closed, for example. The discrete outputs for this module can be positive logic or sourcing types, and their job is to perform positive load switching to the direct current (DC) power supply and give power to the loads. This device works in conjunction with a carrier base from the IC200CHSxxx family.

As the IC200MDL750 is an output module, it requires an additional power supply for all positive load switching. This product will consume up to 90 milliamps of current from a 5v backplane power source, and the operational voltage for this module can be anything from 10.2 volts direct current to 30 volts direct current. Nominal operational voltage is either 12 volts or 24 volts direct current. Note: To operate at 12 volts DC, this device must be upgraded to at least the IC200MDL750B version or newer.
