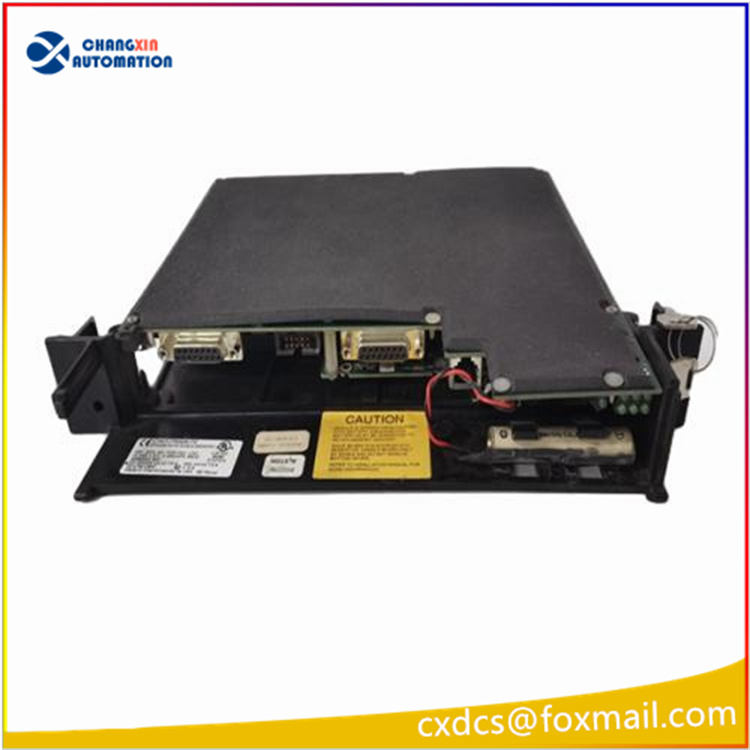

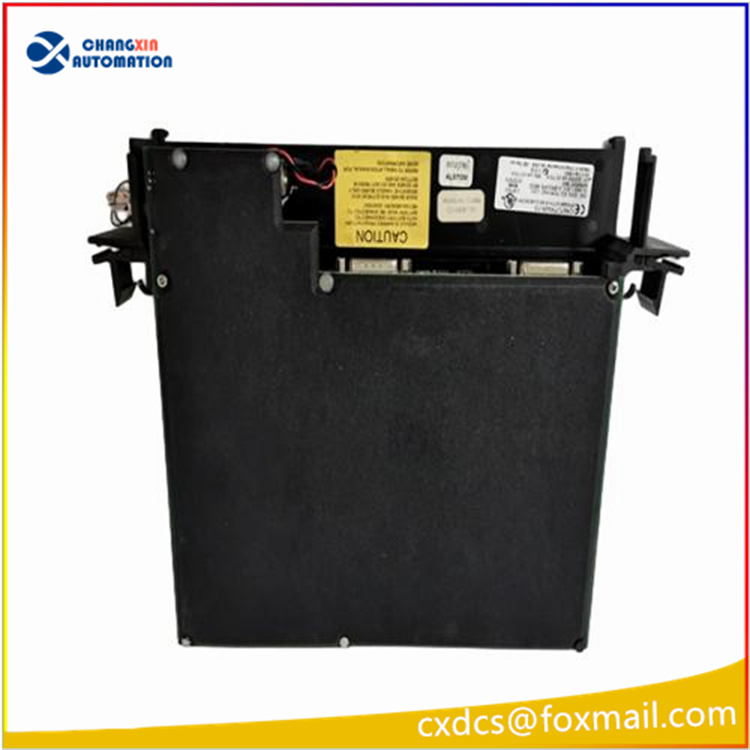

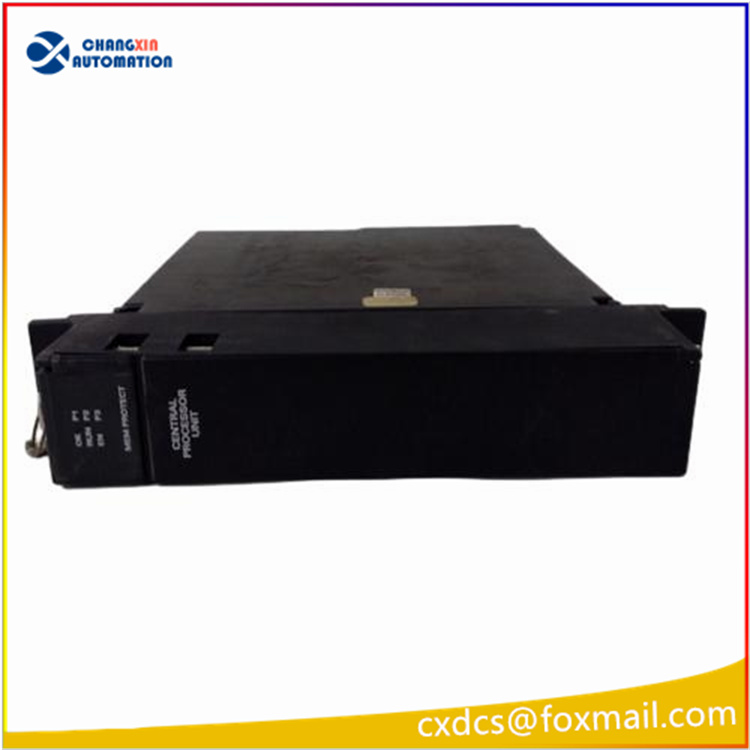

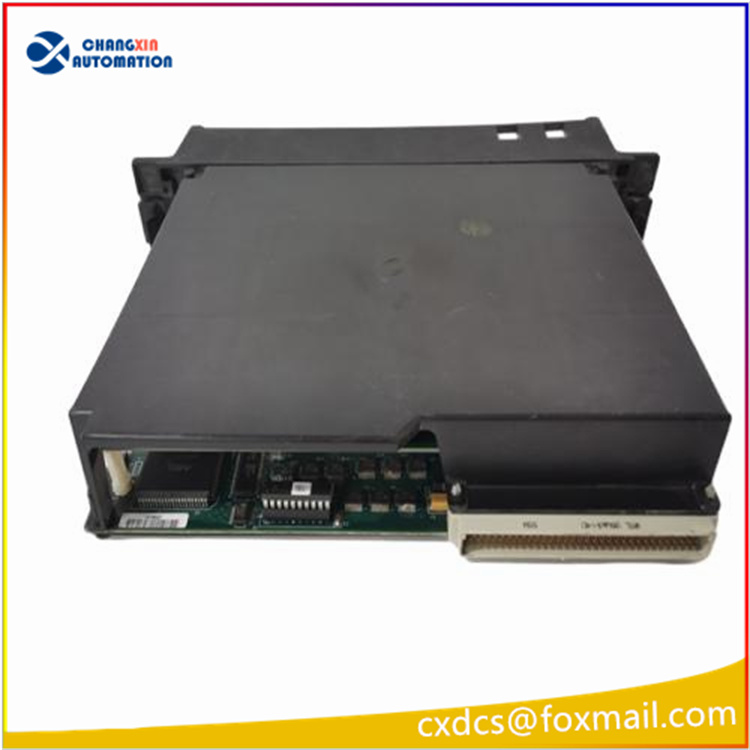

GE Fanuc IC697CPX928 90-70 系列 处理器模块

产品描述
GE Fanuc 系列 90-70 模块，目录编号 IC697CPX928，是一款中央处理器（CPU），主要用于执行下载到 CPU 内存中的用户程序。该 CPU 模块为单插槽机箱，配备 80486DX4 微处理器，运行速度为 96 MHz，每执行一次布尔函数耗时 0.4 微秒。此模块内置 6MB 电池供电的 RAM 和 256KB 非易失性用户闪存，其中也存储有 CPU 固件。
IC697CPX928 可处理 12K 个输入和输出的任意组合，以及多达 8K 个模拟输入和输出。它支持 32 位浮点数据。
IC697CPX928 通过编程软件进行配置。它没有用于硬件参数设置的跳线端子或 DIP 开关。应用程序软件可通过 MS-DOS 软件产品或在 Windows 95 或 Windows NT 系统上运行的基于 Windows 的软件产品，通过以太网 TCP/IP 或通过 SNP 端口进行编程。
该控制器配备了七（7）个状态指示灯，一块用于保存随机存取存储器（RAM）内容的锂电池，以及诸如一（1）个 RS232 串行端口、两（2）个 RS485 串行端口和一（1）个工厂复位端口等通信端口。
IC697CPX928 可与多种选件模块兼容使用，以增强 CPU 的功能并提供额外的能力。这些选件模块包括以太网接口模块、可编程协处理器、字母数字协处理器、总线控制器、通信模块、I/O 链接接口以及整个 IC697 离散量和模拟量 I/O 模块系列。
IC697CPX928 模块所需的标称电流为 3.1 安培，所需输入电压为 5 伏直流电。在强制风冷（风量为 70 立方英尺/分钟）的情况下，该模块可在 32 至 140 华氏度的环境温度下运行。若无强制风冷，IC697CPX928 CPU 模块的运行温度范围则降至 32 至 122 华氏度。根据可用电源类型，可在 IC697CPX928 模块上安装 120 伏交流、240 伏交流或 24 伏直流供电的机架风扇组件。该 CPU 模块配有 3 个串行端口，其中 2 个端口支持 RS-485 通信，1 个端口支持 RS-232 通信。这些串行端口可用于与编程设备连接，以配置 CPU。此外，还可为 PLC 安装可选的以太网模块，以便通过以太网网络配置 IC697CPX928 模块。IC697CPX928 模块支持的 I/O 数量为 8000 个模拟 I/O 和 12000 个 I/O（任意组合）。IC697CPX928 模块在 GE Fanuc 系列 90-70 PLC 机架中安装时需要占用 1 个插槽。模块正面共设有 7 个 LED 灯用于状态更新。

Description

The GE Fanuc Series 90-70 module with catalog number IC697CPX928 is a Central Processing Unit (CPU) that is used mainly to execute user program downloaded to the CPU’s memory. This CPU module is a single slot chassis that features an 80486DX4 microprocessor with speed of 96 MHz and 0.4 µs per Boolean function execution. This module is equipped with an on-board memory of 6MB battery-backed up RAM and 256KB non-volatile user flash memory where CPU firmware is also stored.

The IC697CPX928 is capable of handling a maximum of 12K inputs and outputs of any combination, and up to 8K analog Input and Output. It supports 32-bit floating point data.

The IC697CPX928 is configured using the programming software. It has no jumper terminals or DIP switches for hardware parameter setting. Application software are Programmed by MS-DOS software products, or Windows based software products running on Windows 95 or Windows NT over Ethernet TCP/IP or through an SNP port.

This controller has is equipped with Seven (7) status LEDs specifically, a lithium battery that is used to retain the contents of the Random Access Memory (RAM), and communication ports such as One (1) RS232 serial port, Two (2) RS485 Serial port and One (1) Factory Reset port.

The IC697CPX928 is compatible for use with a variety of option modules to enhance and provide additional capabilities to the CPU. These option modules include Ethernet Interface modules, Programmable Coprocessor, Alphanumeric Coprocessor, Bus Controller, Communication modules, I/O Link Interface, and the entire IC697 discrete and analog I/O modules family.

The nominal current required by the IC697CPX928 module is 3.1 Amps. The input voltage required is 5 Volts DC. With forced air-cooling rated at 70 CFM, the module can be operated at ambient temperatures between 32 and 140 degrees Fahrenheit. Without forced air-cooling, the range of operating temperatures of the IC697CPX928 CPU module is reduced to between 32 and 122 degrees Fahrenheit. Depending on the types of power supply that are available, 120 Volts AC, 240 Volts AC, or 24 Volts DC-powered rack fan assemblies can be installed on the IC697CPX928 module. The CPU module comes with 3 serial ports, of which 2 ports support RS-485 communication and 1 port supports RS-232 communication. These serial ports can be used to interface with programming devices for CPU configuration. Additionally, optional Ethernet modules can also be installed in the PLC to enable the configuration of the IC697CPX928 module over Ethernet networks. The I/O supported by the IC697CPX928 module include a maximum of 8000 analog I/O and 12,000 I/O in any mix. The IC697CPX928 module requires 1 slot in GE Fanuc Series 90-70 PLC rack for installation. A total of 7 LEDs are provided on the front of module for status updates.

技术规格
模块类型：中央处理器
插槽数量：1（单插槽）
所需电流：3.1 安培
点数：12000 个输入和输出（任意组合）
串行端口：三个（RS-232 和 RS-485）
支持：IC660/IC661 I/O 和 IC697 I/O
