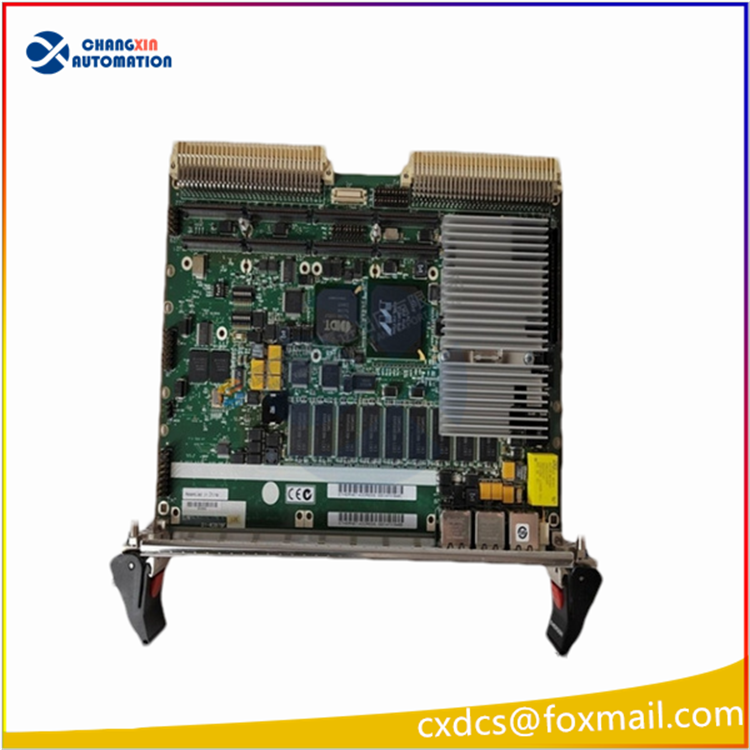

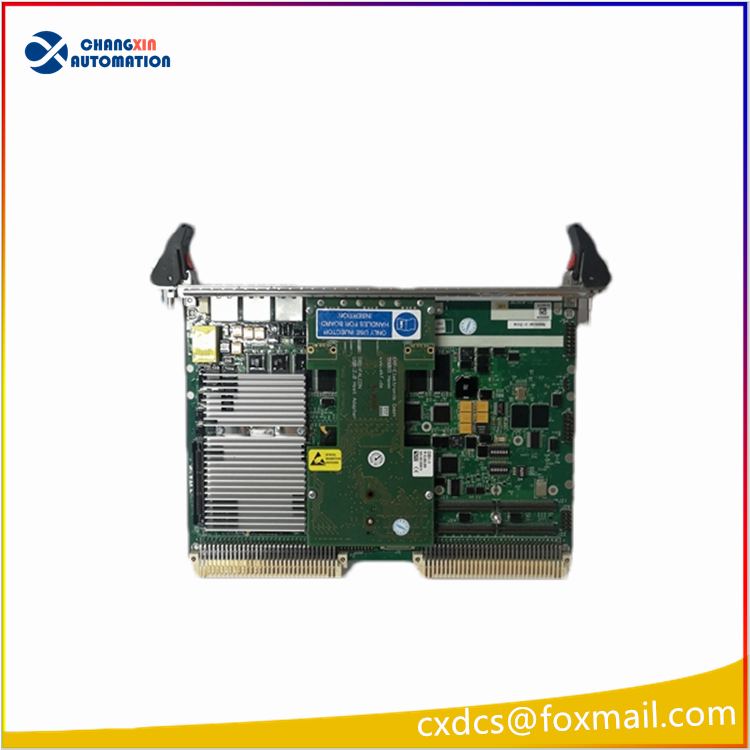

MVME55006E-0163R MVME5500 高性能VME处理器模块

产品细节:

MVME55006E-0163R是一款高性能VME处理器模块，采用摩托罗拉计算机集团(MCG) PowerPlus II架构，可选择PowerPC®处理器-摩托罗拉的MPC7400采用AltiVec™技术进行算法密集型计算或低功耗MPC750。PowerPlus II基于MCG设计的集成PCI桥式存储器控制器ASIC，将存储器性能提升到新的水平，具有582MB/s的存储器读取带宽和640MB/s的突发写入带宽。此外，PowerPlus II架构支持264MB/s的全PCI吞吐量，而不会耗尽CPU的内存。
MVME55006E-0163R旨在满足oem服务于军事和航空航天，工业自动化和半导体工艺设备细分市场的需求

♦PowerPC 7400或PowerPC 750™微处理器32KB/32KB L1缓存
♦高达2MB的辅助后台缓存
100mhz前端总线
♦64MB、128MB或512MB的板载ECC sdram -可扩展至1GB，可选配RAM500内存扩展模块
♦17MB闪存
♦双IEEE P1386.1兼容32/64位PMC扩展槽位
♦64位PCI扩展夹层连接器，允许多达四个以上的pmc
♦双路兼容16550异步串口
双10BaseT/100BaseTX以太网
♦32KB NVRAM和时钟，可更换电池备份
♦4个32位定时器，1个看门狗定时器
♦板载调试监视器
♦单个VME插槽，即使完全配置了两个PMC模块和两个附加的内存夹层

1. •

     The MVME55006E-0163R is a high-performance VME processor module featuring the Motorola Computer Group (MCG) PowerPlus II architecture with a choice of PowerPC® processors—either Motorola’s MPC7400 with AltiVec™ technology for algorithmic-intensive computations or the low-power MPC750. Based on an integrated PCI bridge–memory controller ASIC designed by MCG, PowerPlus II takes memory performance to new levels with 582MB/s memory read bandwidth and 640MB/s burst write bandwidth. Plus, PowerPlus II architecture supports full PCI throughput of 264MB/s without starving the CPU from its memory.
     The MVME55006E-0163R is designed to meet the needs of OEMs servicing the military and aerospace, industrial automation, and semiconductor process equipment market segments

     ♦ PowerPC 7400 or PowerPC 750™ microprocessor with 32KB/32KB L1 cache
     ♦ Up to 2MB of secondary backside cache
     ♦ 100 MHz front-side bus
     ♦ 64MB, 128MB, or 512MB of on-board ECC SDRAM—expandable up to 1GB with optional RAM500 memory expansion modules
     ♦ Up to 17MB Flash memory
     ♦ Dual IEEE P1386.1 compatible 32/64-bit PMC expansion slots
     ♦ 64-bit PCI expansion mezzanine connector allowing up to four more PMCs
     ♦ Dual 16550 compatible async serial ports
     ♦ Dual 10BaseT/100BaseTX Ethernet
     ♦ 32KB NVRAM and time-of-day clock with replaceable battery backup
     ♦ Four 32-bit timers, one watchdog timer
     ♦ On-board debug monitor
     ♦ Single VME slot even when fully configured with two PMC modules and both add-on memory mezzanines
